For Roofer

Technical Data

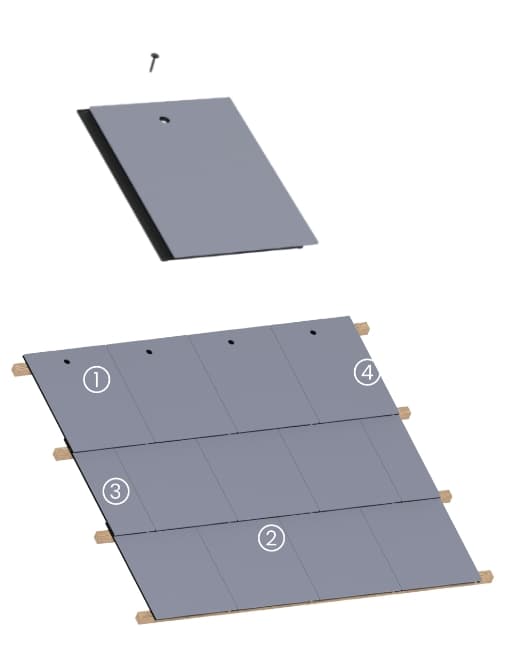

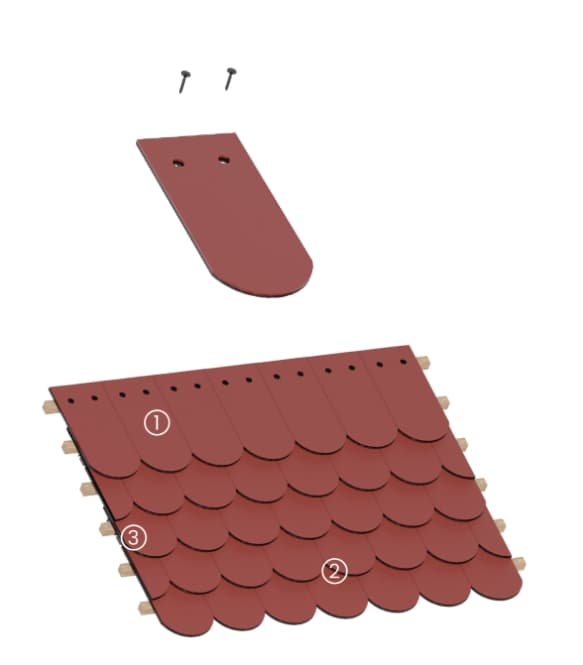

Simple Installation – PhotonRoof

PhotonRoof tiles feature system mounting holes; depending on the variant, installation is carried out with one or two screws.

Batten Spacing

340-360 mm

Batten Spacing

155-165 mm

Active tile generating green energy
Passive tile installed in shaded areas
Half-size passive tile enables a staggered layout
Left-hand active tile for an aesthetic finish

Module Variants

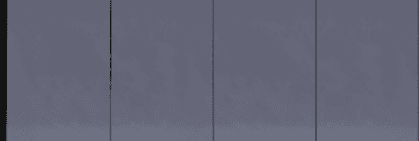

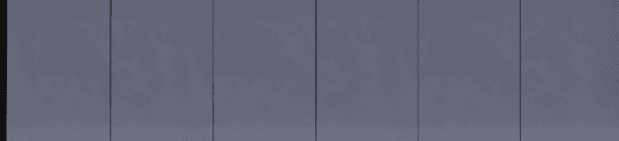

Modern

420 mm

150 mm

M0.5

420 mm

300 mm

420 mm

925 mm

420 mm

1225 mm

420 mm

1825 mm

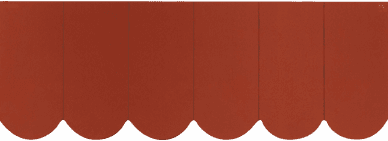

Vintage

380 mm

90 mm

M0.5P

380 mm

90 mm

M0.5L

380 mm

180 mm

380 mm

540 mm

380 mm

720 mm

380 mm

1080 mm

Complete System

Starting with active tiles and including all necessary system devices, comprehensive installation by a certified installer, and concluding with a dedicated app for managing the energy produced by the tiles.

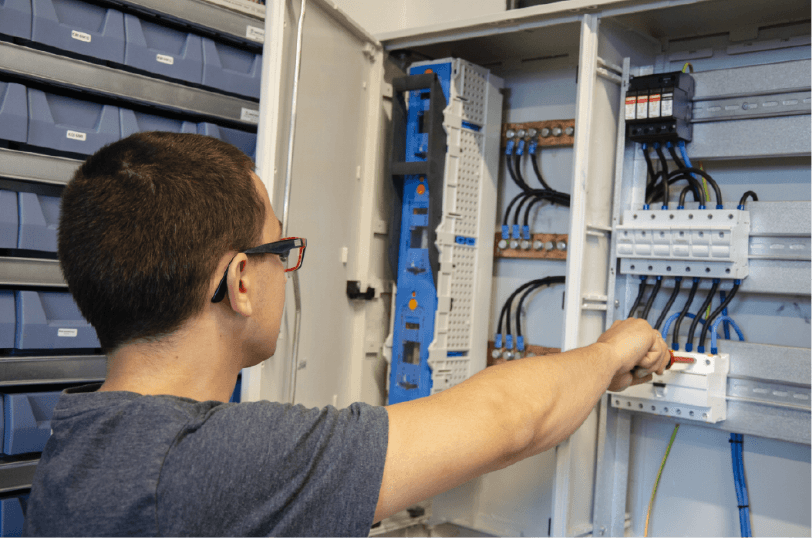

Technician operating an electrical control cabinet, adjusting a circuit breaker inside a wired distribution panel.

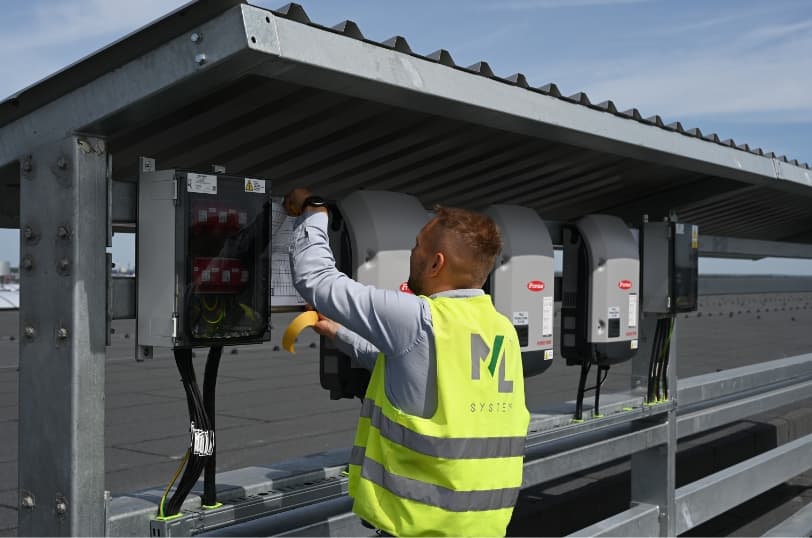

Technician in an ML System vest servicing rooftop solar inverters under a metal canopy.

View roof installation and flashing details

Respect and Ecology

The process of creating the tile undergoes a precise carbon footprint assessment, ensuring the ability to determine the time it will take to be offset by the production of clean energy.

Verified information about the product’s environmental impact throughout its lifecycle allows for a conscious choice of a product supporting sustainable development.

Continuous production optimization to reduce emissions is the result of the work of our engineers and the entire R&D department.

Type 3 Environmental Declaration icon image

The environmental declaration awarded to ML System, including the PHOTONROOF tile, is a testament to our commitment to the development of sustainable construction.

The use of PHOTONROOF tiles increases the number of points in final LEED and BREEAM certifications.

We manage energy responsibly and efficiently, as confirmed by the ISO 50001 certification.

Technological Innovation

Hailstone impact test

Hailstone size: 35 mm

Speed: 37 m/s, 133 km/h

The R&D department of ML System has a modern laboratory where new technologies and products are constantly being developed, many of which are covered by patents and utility models. The laboratory is also equipped to test newly introduced products.

Patents and utility models related to PhotonRoof, registered in:

USA UP/100A/2021
Polish Patent Office (UP RP): P.441605, P.448637
EUIPO: 015018196-0001, 015018196-0002, 015018196-0003, 015018196-0004, 015021233-0001, 015021233-0002, 015058120-0001, 015058120-0002, 015058120-0003

Economy and Comfort

Lower installation cost of PhotonRoof tiles compared to the installation of roofing and additional photovoltaic systems.

Guaranteed durability ensures long-term benefits from the PhotonRoof installation.

Increased energy efficiency thanks to innovative quantum well technology.

Excellent acoustic and thermal insulation ensures high usability performance.

Potential for obtaining subsidies for the entire active surface of the roof.

Resistance to fire, hail, UV radiation, and moss growth ensures long-term comfort and durability.

Standard batten spacing allows easy integration of PhotonRoof tiles with all types of roofing.

The complete PhotonRoof system includes tiles, necessary flashing, delivery of tiles to the construction site (for full pallets), authorized installation, essential devices, and an energy management app.
